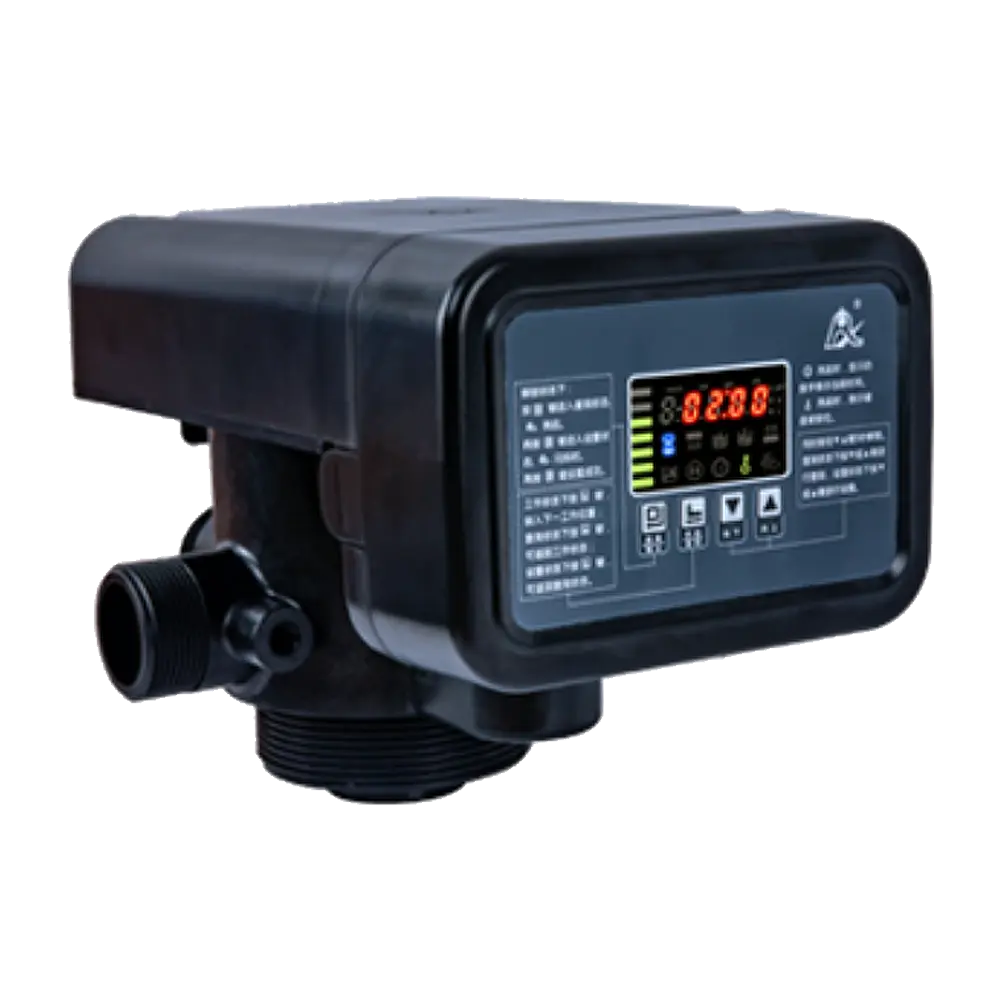

53508 Automatic Filter Valve (F134A1)
High-performance Runxin 53508 Automatic Filter Valve for professional filtration applications. 8 m³/h flow rate with corrosion-resistant materials and dynamic LED display for efficient water treatment control.
Description
The Runxin 53508 (F134A1) / 53608 (F134A3) Automatic Filter Valve is engineered for efficiency, reliability, and user convenience. Designed for water filtration systems with a flow rate of 8 m³/h, this valve adopts a high-grade ceramic sealing surface and corrosion-resistant materials that ensure long service life and stable operation.
It supports Service, Backwash, and Fast Rinse modes, managed through a dynamic LCD screen that offers real-time operational feedback and system alerts.
Ideal for both industrial and municipal filtration systems, this valve allows precise control and easy configuration through manual, semi-automatic, or interlocked functions — making it suitable for parallel and multi-step treatment systems such as RO pre-treatment.
Technical specifications
| Model | 53508 (F134A1) / 53608 (F134A3) |
|---|---|
| Flow Rate | 8 m³/h |
| Function | Automatic multiport control for filtration systems |
| Control Modes | Manual / Automatic / Interlocked |
| Display | LED dynamic display with real-time operation status |
| Material | High-strength corrosion-resistant ceramic and polymer components |
| Power Supply | AC100–240V, 50–60Hz / DC12V1.5A |
| Applications | Sand filters, activated carbon filters, and multi-media filters |
| Temperature Range | 5°C–50°C |
| Pressure Range | 0.15–0.6 MPa |
| Riser Pipe | 1.05" OD |
| Drain Connection | 1" F |
| Inlet/Outlet | 1" F |
| Tank Diameter Range | 6"–24" |
