Automatic time-controlled multiport filter valve designed for filtration systems up to 4 m³/h. Ideal for sand and carbon filters with reliable performance and simple operation.

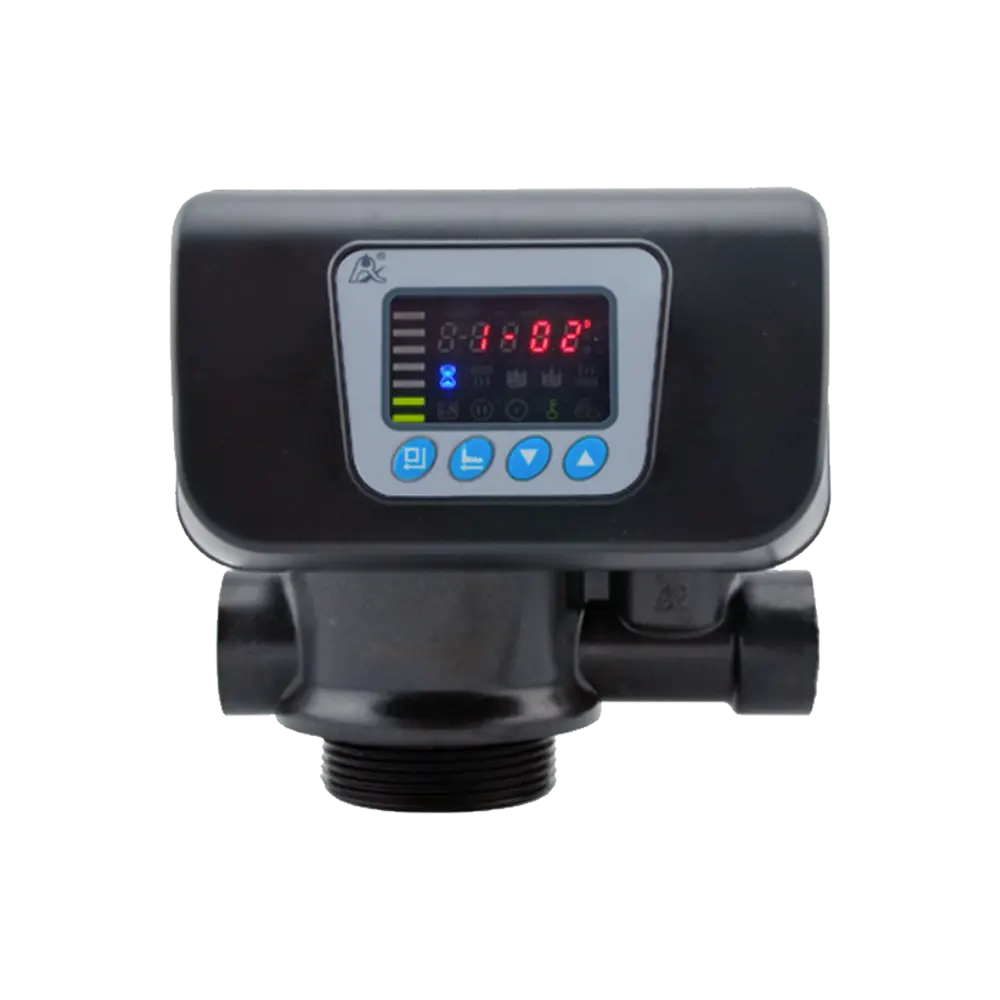

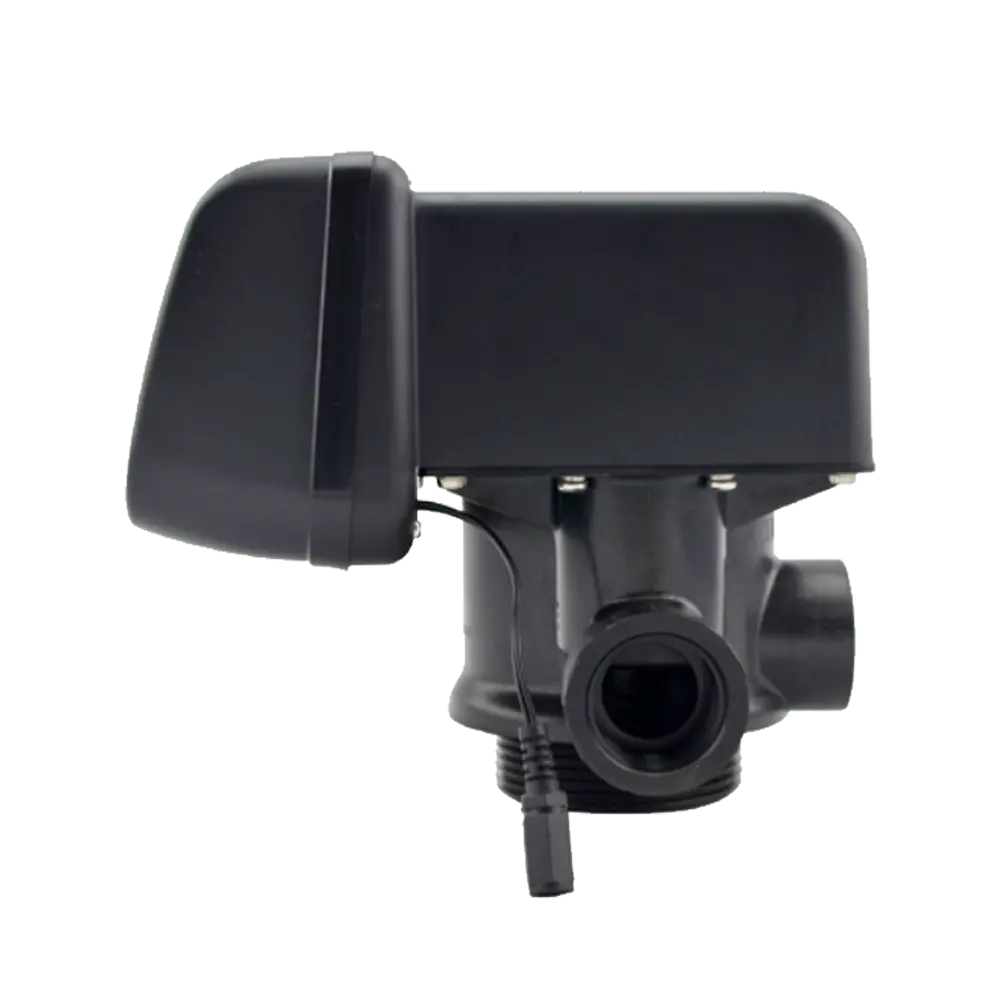

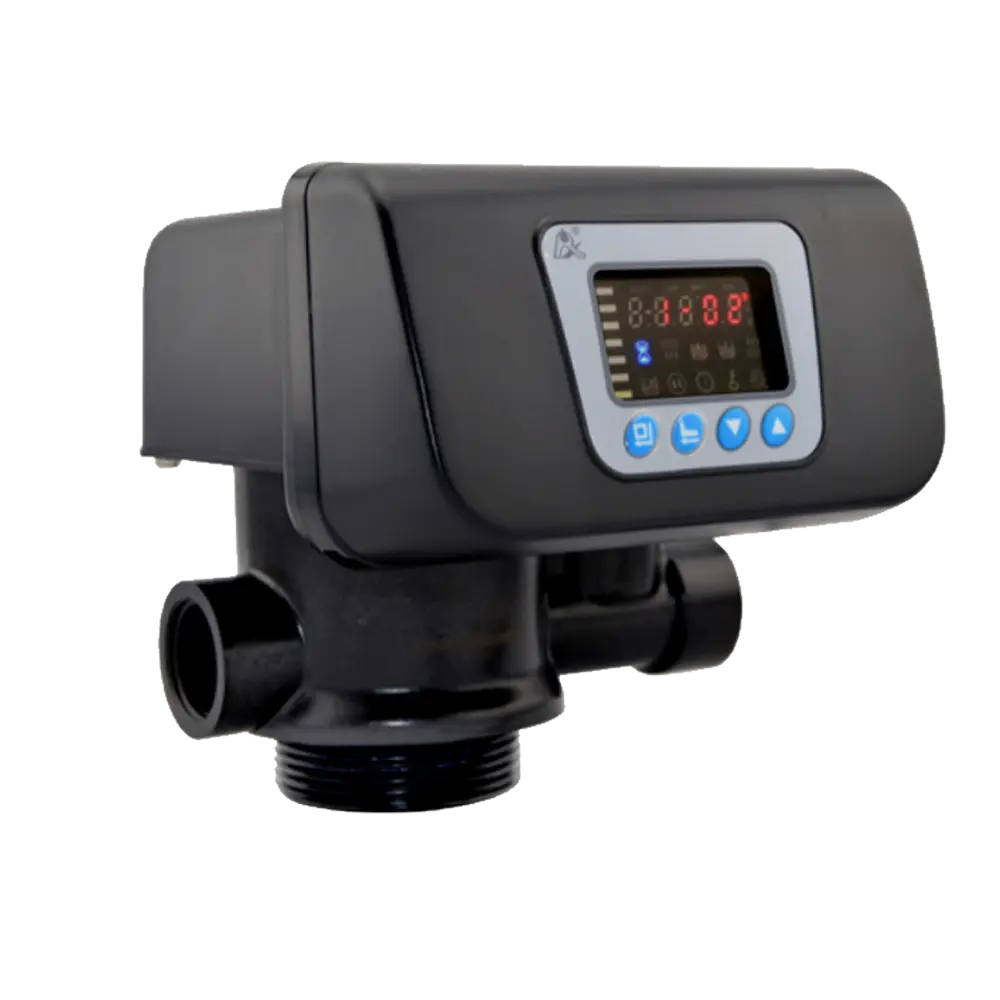

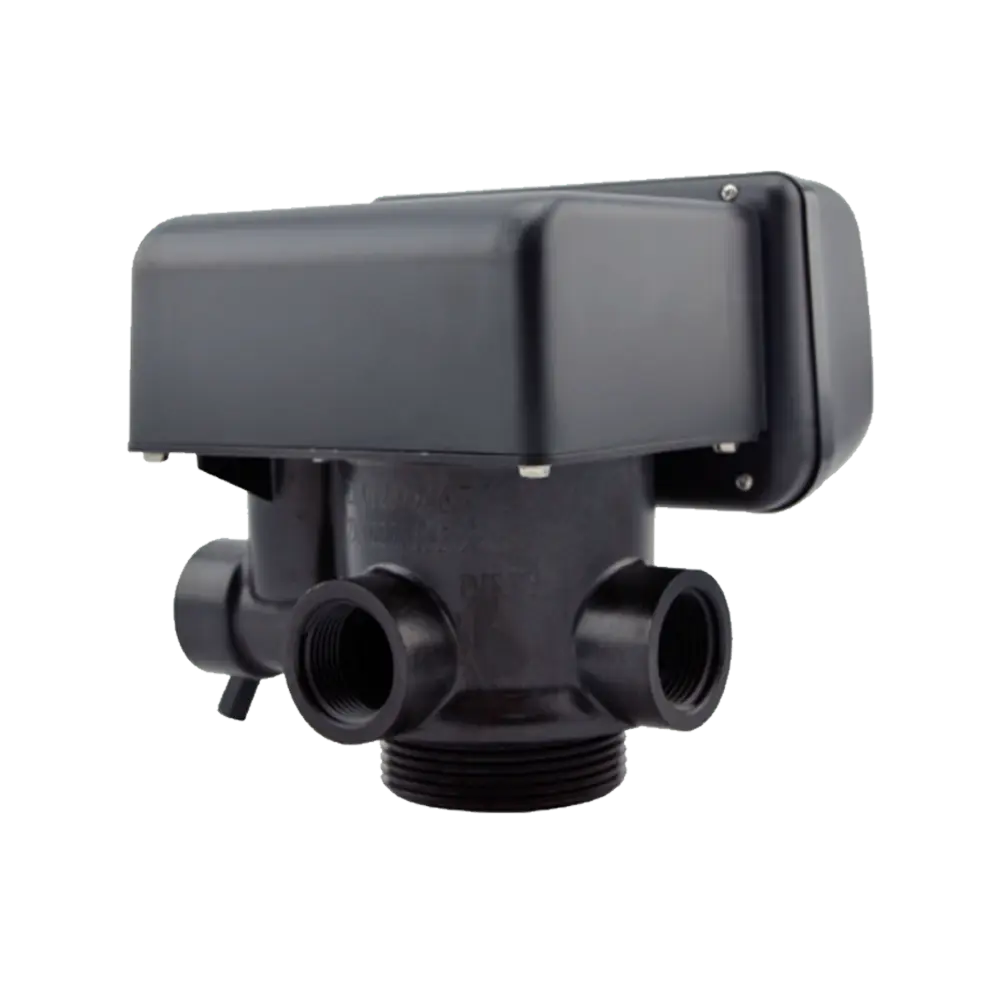

The Runxin 53504S (F67B1) Automatic Multiport Filter Valve is engineered for efficient and reliable control of water filtration systems with a flow rate of up to 4 m³/h. Designed with a durable and corrosion-resistant hermetic head, it offers seamless performance for service, backwash, and fast rinse cycles.
This model operates on a time clock regeneration system, allowing users to program rinsing intervals by hours or days, ensuring optimal filtration performance with minimal manual intervention. The valve’s LED dynamic display, button lock function, and simple structure make it easy to use and maintain in residential, commercial, and industrial settings.
Features & Benefits
Compact automatic control valve for filtration systems up to 4 m³/h
Time clock-based control for scheduled backwash and rinse cycles
Hermetic head design for high corrosion resistance and long lifespan
LED display with easy operation and real-time rinsing indicator
Simple structure, reliable sealing, and quiet operation
Button lock to prevent unintended operation
Interlock function for multi-valve systems, ensuring proper rinse sequencing
Ideal for sand and activated carbon filtration units
| Model | 53504S (F67B1) |
|---|---|
| Valve Type | Automatic multiport filter valve |
| Flow Rate | 4 m³/h |
| Inlet/Outlet | 1″ F |
| Drain | 1″ F |
| Riser Pipe | 1.05″ OD |
| Filter Tank Size | 6″–14″ |
| Working Pressure | 0.15 – 0.6 MPa |
| Temperature Range | 5 – 50 °C |
| Water Turbidity | < 20 FTU |
| Power Adapter | Input AC100–240V / 50–60Hz, Output DC12V / 1.5A |
| Relative Humidity | ≤ 95%, non-condensing |
| Filter Media Compatibility | Quartz sand, activated carbon |
