Automatic multiport filter valve designed for backwash and rinse control in residential and commercial filtration systems. Reliable operation with LCD display and timer or meter control modes.

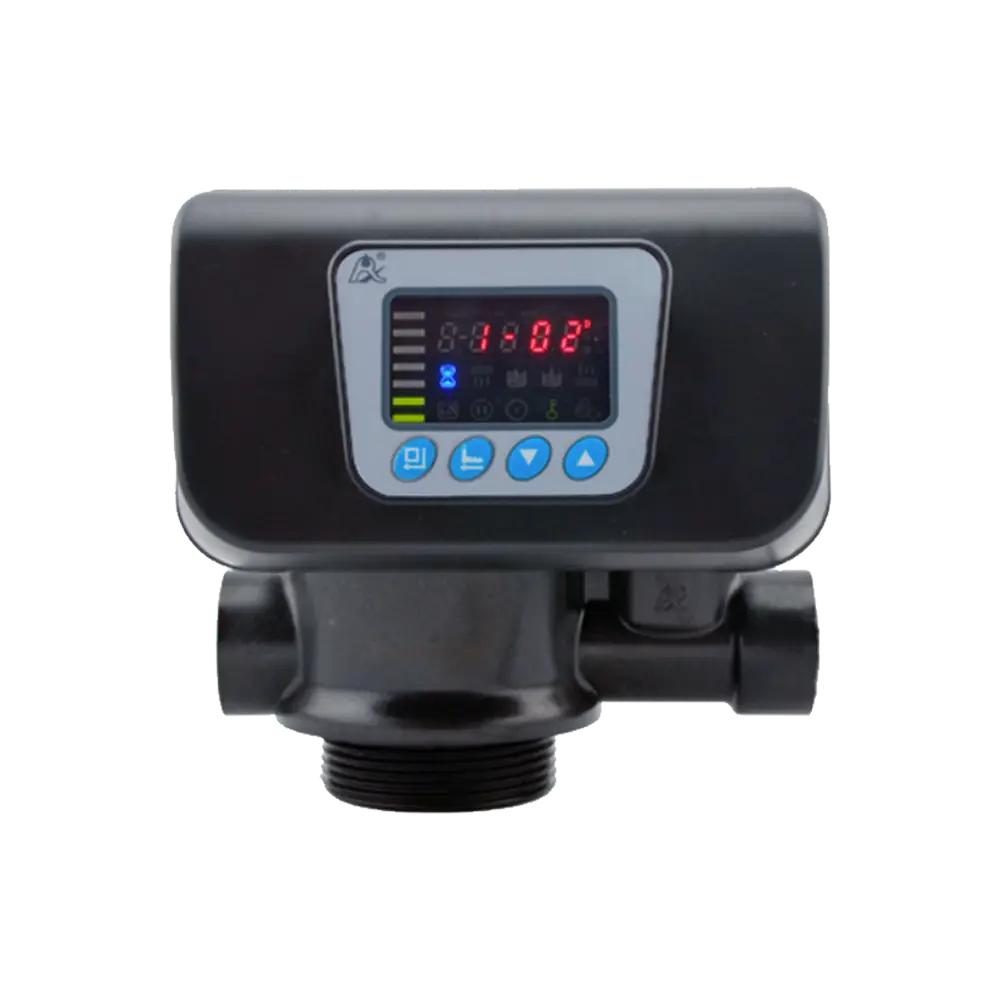

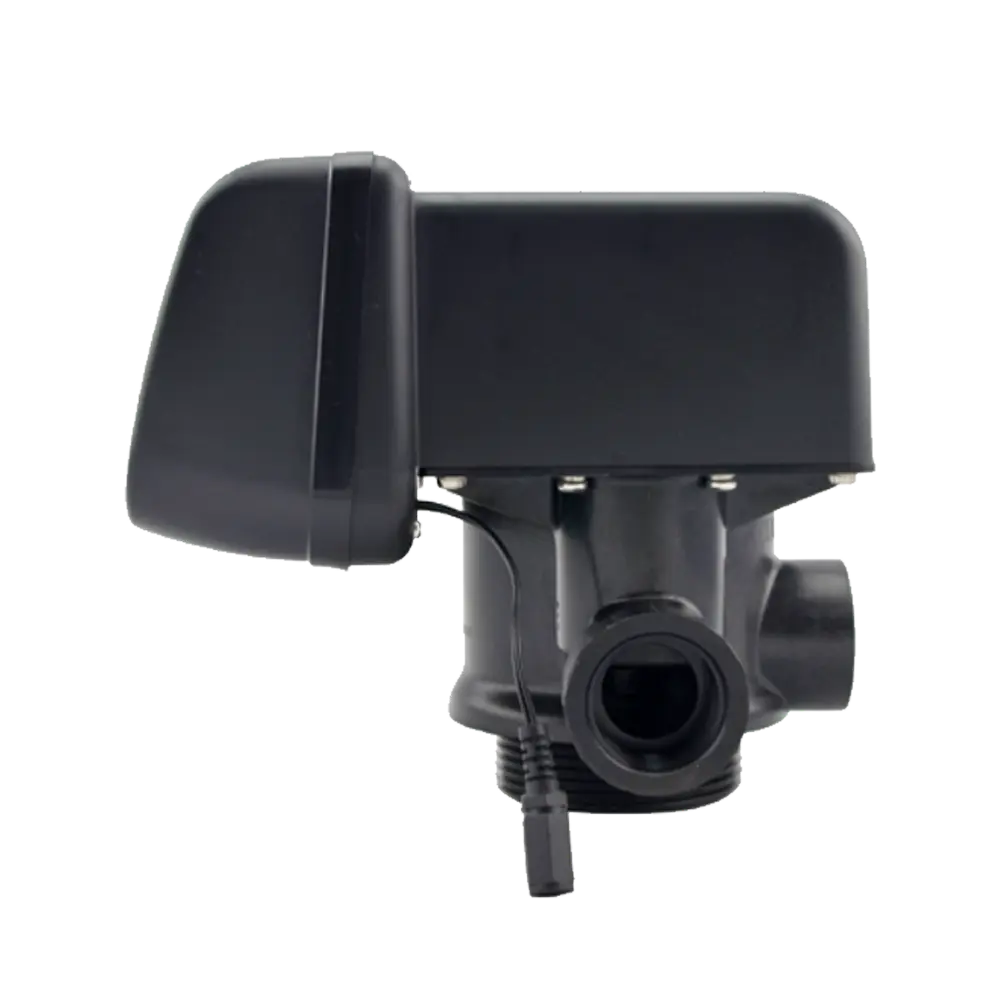

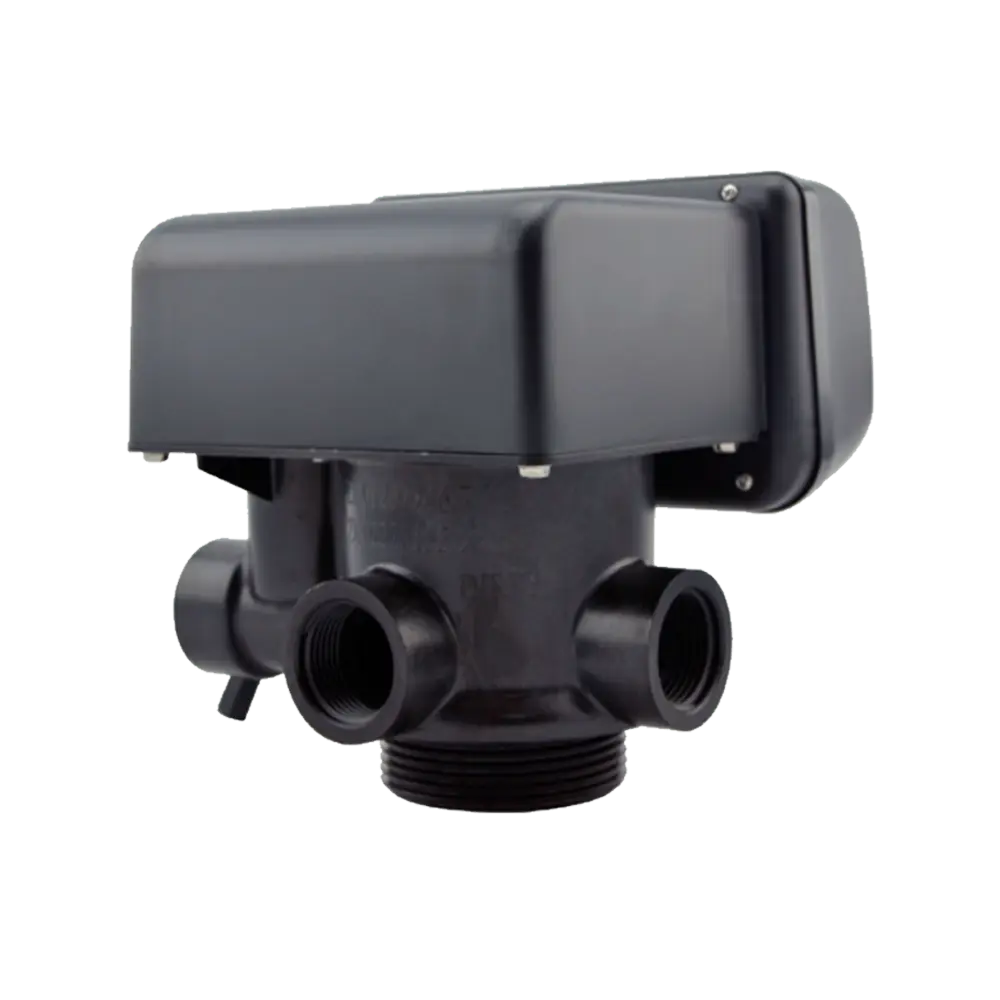

The Runxin 53504 (F67C1 / F67C3) Automatic Multiport Filter Valve offers reliable automatic control for water filtration systems with a flow rate of up to 4 m³/h. Built with a corrosion-resistant Noryl body and hermetic head faces, it delivers consistent filtration performance and long service life.
Designed for both time clock and meter-based regeneration modes, it provides precise control for various applications such as activated carbon and quartz sand filtration. The F67C1 operates as a timer-based model, while the F67C3 functions as a meter type.
Features & Benefits
Automatic control for backwash, service, and fast rinse cycles
Hermetic head design for high sealing and corrosion resistance
Easy operation with dynamic LCD display and user-friendly interface
Configurable for either timer or flow-meter control
Allows parameter adjustment to suit different water quality needs
Supports interlock function for systems with multiple valves
Remote handling input compatible with PLC and computer control
Compact and durable design suitable for residential and commercial systems
| Model | F67C1 / F67C3 (53504) |
|---|---|
| Valve Type | Automatic multiport filter valve |
| Flow Rate | 4 m³/h |
| Mount Type | Top mount |
| Inlet/Outlet | 1″ |
| Drain | 1″ |
| Mounting Base | 2.5″ – 8NPSM |
| Riser Pipe | 1.05″ OD |
| Filter Tank Size | 6″ – 13″ |
| Working Pressure | 0.15 – 0.6 MPa |
| Temperature Range | 5 – 50 °C |
| Water Turbidity | < 20 FTU |
| Power Adapter | Input AC100–240 V / 50–60 Hz, Output DC12 V 1.5 A |
| Application | Activated carbon filters, sand filters |
| Filter Media | Quartz sand, activated carbon |
